Introduction
In hydraulic systems — whether they serve fire protection networks, water distribution infrastructure, irrigation systems, or industrial process plants — the valves that control the flow and pressure of water are among the most critical components in the entire system. CLA-VAL is a globally recognized manufacturer of automatic control valves that has been producing hydraulic control solutions for over 80 years. Their products are trusted in some of the most demanding water management and fire protection applications worldwide. For businesses in the UAE seeking a reliable CLA-VAL valve supplier UAE, understanding why these valves are so widely specified helps in appreciating the value they deliver.
What Makes CLA-VAL Valves Distinctive

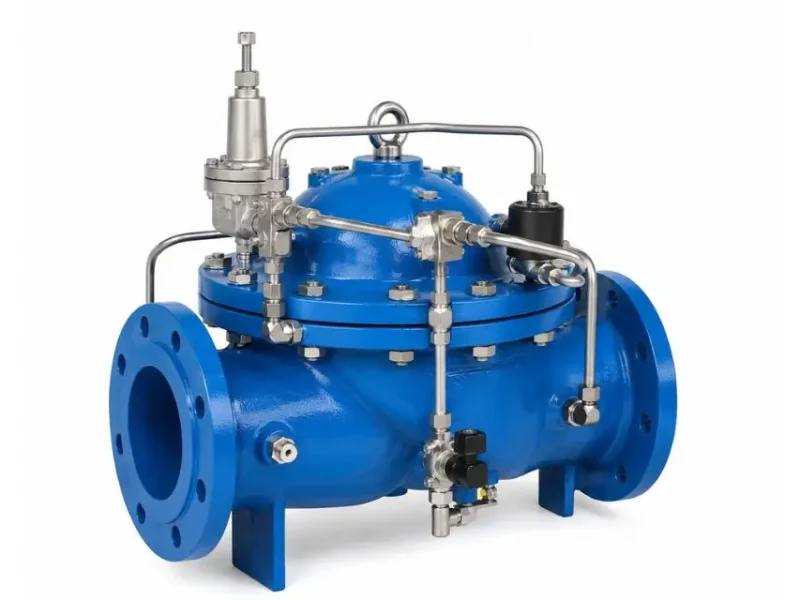

CLA-VAL automatic control valves use a hydraulically operated diaphragm mechanism that eliminates the need for external power sources — the valve uses the system’s own hydraulic pressure to operate its control functions. This self-actuating characteristic makes CLA-VAL valves ideal for remote or unmanned locations where electrical power may not be available or reliable. The pilot system — a network of small-diameter tubing connecting sensing points to the valve’s actuating mechanism — provides the precise pressure sensing that allows the valve to respond automatically to changes in system conditions.
The modular design of CLA-VAL valves is another key advantage. A single valve body can be configured with different pilot arrangements to perform a variety of control functions — pressure reducing, pressure sustaining, level control, flow control, check function, and combinations of these — simply by changing the pilot configuration. This flexibility reduces the number of different valve types that need to be stocked and allows the valve to be reconfigured in the field if system requirements change.
Applications of CLA-VAL Valves in Hydraulic Systems
Pressure Reducing Valves
In water distribution and fire protection systems, maintaining the correct downstream pressure is essential for both system performance and the protection of downstream equipment. CLA-VAL pressure reducing valves automatically maintain a constant downstream pressure regardless of fluctuations in the upstream supply pressure. In high-rise buildings, for example, zone pressure reduction is necessary to prevent excessive pressures at lower floors when the system is designed to deliver adequate pressure at the highest floors.
Pressure Sustaining Valves
Where it is important to maintain a minimum upstream pressure — for example, to ensure adequate supply pressure to priority users or to prevent cavitation in pumps — CLA-VAL pressure sustaining valves prevent the upstream pressure from falling below a preset minimum by throttling or closing when upstream pressure drops toward the set point.
Flow Control Valves
CLA-VAL flow control valves limit flow to a preset maximum regardless of changes in pressure differential. This is particularly valuable in systems where unrestricted flow to some zones could deprive other areas of adequate supply — in fire protection systems, for example, ensuring that water is distributed appropriately between different zones during a fire event.
Pump Control and Check Functions
CLA-VAL pump control valves provide controlled opening and closing sequences that prevent the water hammer — the damaging pressure surge caused by sudden valve operation — that can occur when pumps start and stop. The slow-close check function ensures that reverse flow is prevented without the damaging pressure transients that fast-acting check valves can cause.
Suggested Read – Benefits of Using CLA-VAL Valves in Fluid Control
CLA-VAL Valves in UAE Fire Protection Systems
In the UAE’s fire protection infrastructure, CLA-VAL valve supplier UAE relationships are important because fire protection systems here must comply with specific international standards — typically NFPA standards — that specify performance requirements for pressure control, flow delivery, and system reliability. CLA-VAL’s certified products meet these standards, which is an important consideration for system designers and facility operators seeking compliance with UAE Civil Defence requirements.
Conclusion
CLA-VAL valves are used in hydraulic systems because they offer self-actuating control without external power, modular configurability for multiple control functions, long service life, and certified performance that meets the most demanding international standards. For businesses in the UAE seeking access to these trusted products, working with a reliable CLA-VAL valve supplier UAE ensures genuine products, correct specification support, and the technical assistance needed to get the best performance from these sophisticated hydraulic control valves.
