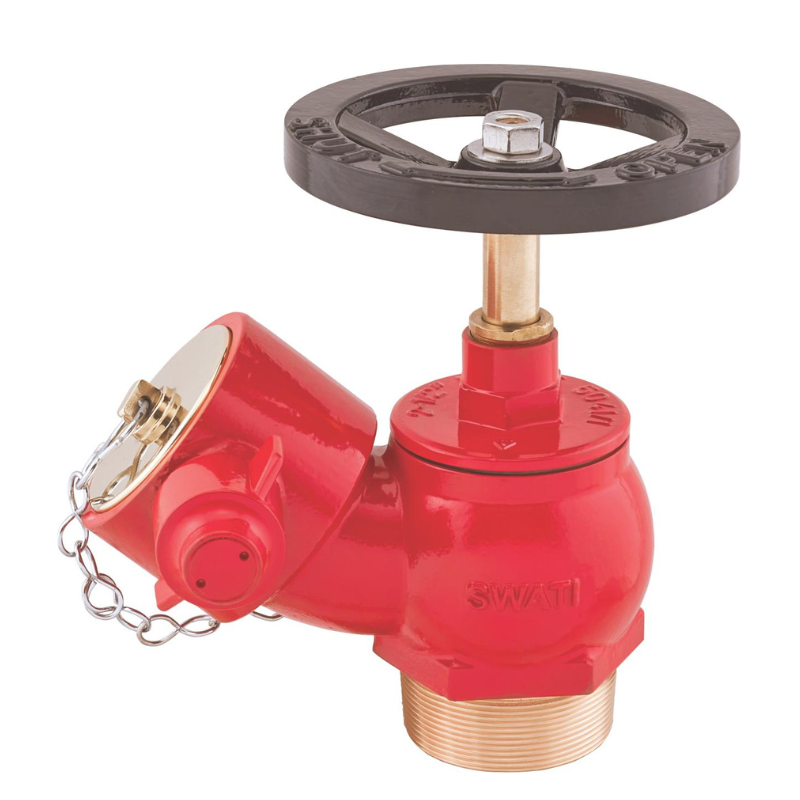

Landing Valve (Oblique Type)

Landing Valve (Oblique Type)

Features

  • All Valves manufactured in accordance to BS 5041 Part 1:1987
  • The inlet on the Landing Valve can be either Flanged or Screwed.
  • The Landing Valves are classified under low pressure.
  • Possible to replace the gland seal when pressure with the valve fully closed.
  • Disc facing is replaceable type.
  • All the products are suitable for both on-shore and off-shore applications.
  • Delivery hose connection and blank cap complying with BS 336:2020 Standar

Specifications

  • Body : Copper Alloy to BS 1400 LG 2
  • Hand Wheel : Grey Cast Iron to BS EN 1561
  • Inlet : Flanged or Screw Thread to BS 21
  • Outlet : Female Instantaneous to BS 336:2010
  • Working Pressure : 15 Bar Max
  • Valve Seat Test Pressure : 16.5 Bar
  • Body Seat Test Pressure : 22.5 Bar
  • Flange Drilling : BS 4504 Part 2:1974 Table 16/21
  • Nominal Size : DN 65 and 2.5
